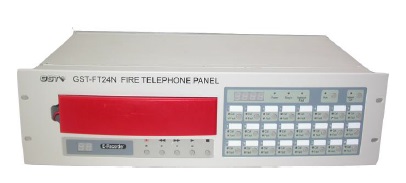

GST-FT24N Fire Telephone Panel

Feature

    ☆24 Zone addressable fire telephone center
    ☆ 2-way voice communication
    ☆ Networkable up to 8 Fire Telephone panels
    ☆ Call divert to the network panels
    ☆ Automatic record of conversation
    ☆ Operator can select single or group call
    ☆ Operator can ring outstations and fixed handsets
    ☆ Call panel to panel
    ☆ Up to 10 communication points can be connected to each zone using socket jack
    ☆ Network cable monitored
    ☆ Communication line monitored
    ☆ 19”/3U standard rack mount

Technical Specifications

    ☆Operating Voltage: 24VDC
    ☆ Standby Current: 200mA
    ☆ Maximum Alarm Current: 1 Ampere
    ☆ Operating Environment:
          Temperature -5℃ ～ +40℃
          Relative Humidity 95%
    ☆ Dimension: 482.5mm x 132.5mm x 225mm
