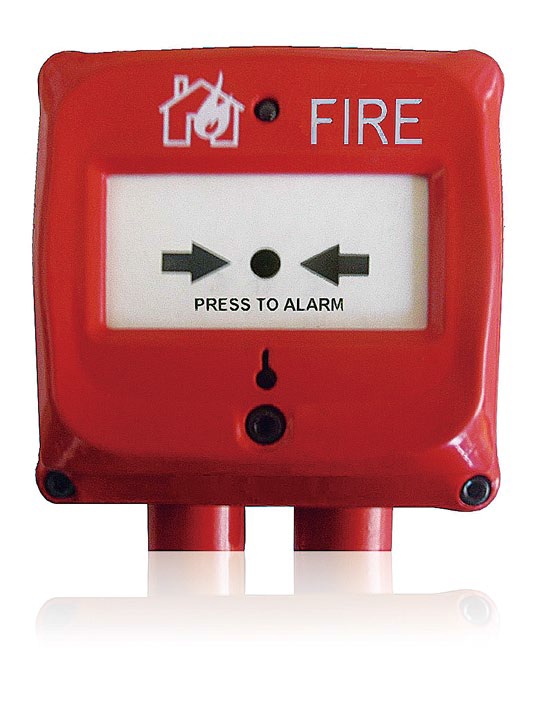

Digital Flame Proof Manual Call Point

Feature

    ☆Built-in 8-bit microprocessor control
    ☆ Electronically addressed by handheld programmer
    ☆ Non break-glass type, resetable by special key
    ☆ With wide temperature range, high ingress protection rating, the MCP can apply to vessels, outdoors and explosive hazardous environment

Technical Specifications

    ☆Operating Voltage: Loop 24V
    ☆ Operating Current:
           Standby Current: 0.8mA
           Alarm Current: 2.5mA
    ☆ Operating Environment:
           Temperature: -40℃ ～ +70℃
           Relative Humidity: 95%
    ☆ Dimension: 219mm x 129mm x 95mm
    ☆ Ex Mark: ExdIIBT6 Gb/DIP A20 TA, T6
    ☆ Ex Certificate No.: CE12.1341
