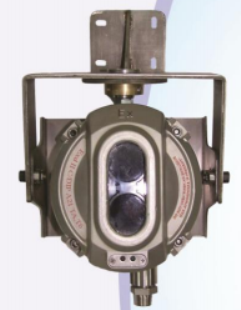

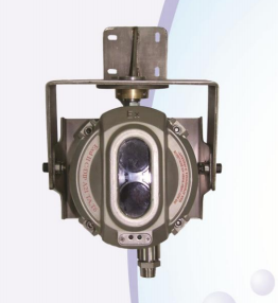

Digital Flame Proof Reflective Beam Detector

Operating Voltage: Power supply voltage 15VDC~28VDC
                         Loop voltage 15V~28V

Operating Current:
Power current: Commission current ≤20mA
                   Standby current ≤12mA
                   Alarm current ≤22mA
Maximum Power Consumption: 616mW
Loop current≤2mA
Maximum Loop Consumption: 56mW

Fire, fault contact output:

Fire relay: contact capacity is 28V/2A. Normally open in normal state, closed in fire condition.

Fault relay: contact capacity is 28V/2A. Normally open in normal state, and closed in fault condition.

Adjustment Angle: Vertical ±30 degrees, horizontal ±45 degrees
5. Maximum angular misalignment: ±0.5°
6. Sensitivity Level:
Level 1: high sensitivity
Level 2: low sensitivity

Operating Environment:
Temperature: -20C～+55C
Relative Humidity≤95%, non condensing
Monitoring Area: Maximum monitoring area: 14×100＝1400m2

Maximum width: 14m

Length of Optical Pathway: 8m～100m
Ingress Protection Rating: IP66
Dimensions:
           Length: 344mm
           Width: 240mm
           Depth: 212mm (with adjustment frame)

Material and Color of Enclosure: Stainless steel, metallic gray
Weight: Detector: 6kg Adjustment frame: 3.8kg
Mounting Hole Spacing:Spacing for embedding: 70mm x 50mm
Explosion-proof mark: Exd IIC T6 Gb/ DIP A21 TA,T6
Explosion-proof Certificate Number: CE11.1246X
Standard: EN54-12、GB 12476.1-2000,GB 3836.1-2010、GB 3836.2-2010
